SurfaceFlinger(3)--AppEventThread接受vsync信号

发表于 分类于 ， 阅读次数： Valine：

Andorid Q

一. 前言

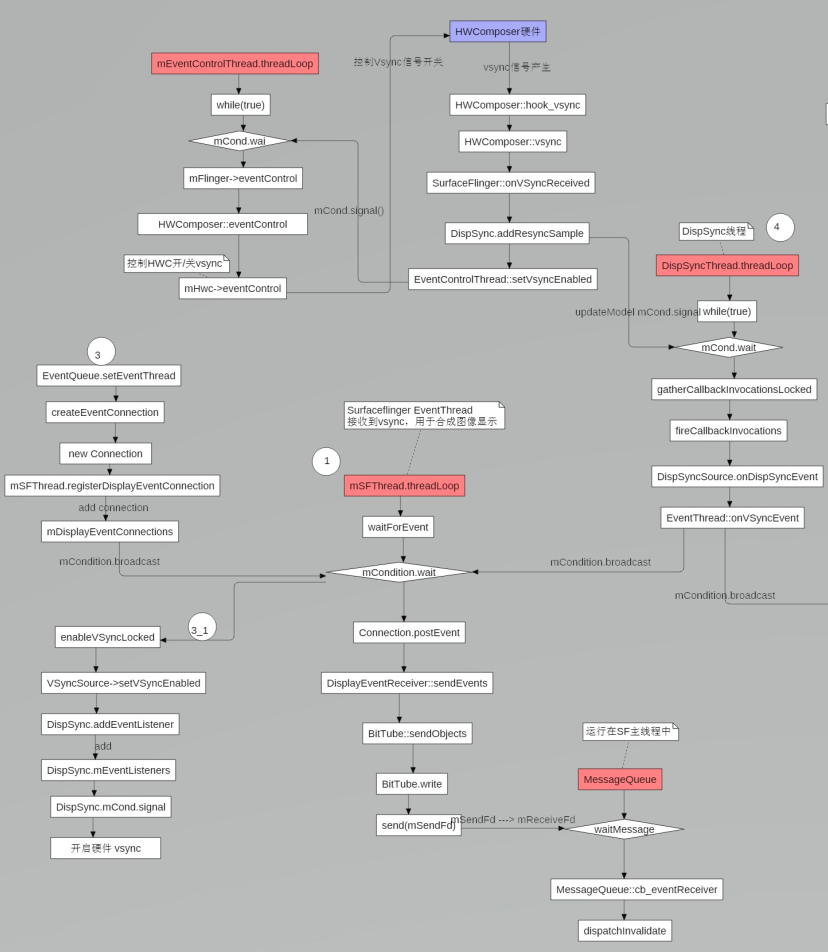

前面我们分析了SF EventThread接收到 sw vsync信号后的处理流程，以及SurfaceFlinger是如何通过DispSyncThread将HW Vsync转成sw vsync的流程。

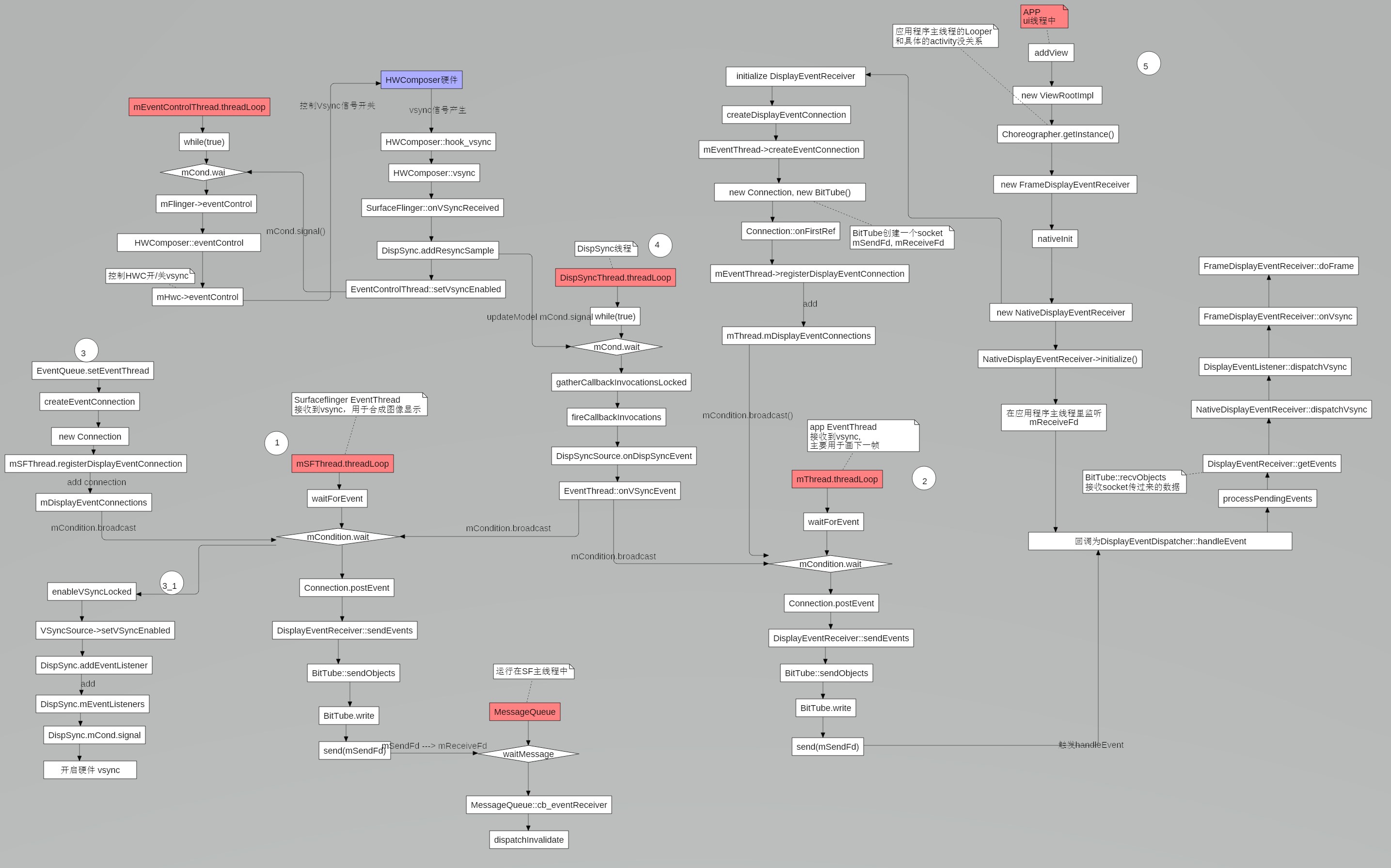

一图以概之：


我们知道android app绘制是离不开编舞者 Choreographer 的，关于 Choreographer 这里就不赘叙，详细可以参考这篇博文。
接下来重点分析一下应用app进程是如何与sw vsync信号同步的。

二. App进程与AppEventThread建立通信过程

回忆一下，我们知道当应用进程的第一个具有布局的Activity启动时，会初始化Choreographer.

2.1 Choerographer初始化

Choerographer是个单例，意味着一个应用进程中只会存在一个实例化对象。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
// Thread local storage for the choreographer.
private static final ThreadLocal<Choreographer> sThreadInstance =
        new ThreadLocal<Choreographer>() {
    @Override
    protected Choreographer initialValue() {
        Looper looper = Looper.myLooper();
        if (looper == null) {
            throw new IllegalStateException("The current thread must have a looper!");
        }
        // 主线程中初始化，注意传入的第二个参数 VSYNC_SOURCE_APP
        // 这个值是DisplayEventReceiver.VSYNC_SOURCE_APP 也就是 0
        // 与ISurfaceComposer.h中的VsyncSource.eVsyncSourceApp值保持同步
        // 代表的就是 AppEventThread.
        Choreographer choreographer = new Choreographer(looper, VSYNC_SOURCE_APP);
        if (looper == Looper.getMainLooper()) {
            mMainInstance = choreographer;
        }
        return choreographer;
    }
};

private Choreographer(Looper looper, int vsyncSource) {
    mLooper = looper;
    mHandler = new FrameHandler(looper);
    // 初始化 DisplayEventReceiver
    // USE_VSYNC 值默认为true，读取属性debug.choreographer.vsync
    mDisplayEventReceiver = USE_VSYNC
            ? new FrameDisplayEventReceiver(looper, vsyncSource)
            : null;
    mLastFrameTimeNanos = Long.MIN_VALUE;

    mFrameIntervalNanos = (long)(1000000000 / getRefreshRate());

    mCallbackQueues = new CallbackQueue[CALLBACK_LAST + 1];
    for (int i = 0; i <= CALLBACK_LAST; i++) {
        mCallbackQueues[i] = new CallbackQueue();
    }
    // b/68769804: For low FPS experiments.
    setFPSDivisor(SystemProperties.getInt(ThreadedRenderer.DEBUG_FPS_DIVISOR, 1));
}

2.2 FrameDisplayEventReceiver初始化

1
2
3
public FrameDisplayEventReceiver(Looper looper, int vsyncSource) {
    super(looper, vsyncSource);
}

FrameDisplayEventReceiver类继承了DisplayEventReceiver类。

1
2
3
4
5
6
7
8
9
10
11
12
public DisplayEventReceiver(Looper looper, int vsyncSource) {
    if (looper == null) {
        throw new IllegalArgumentException("looper must not be null");
    }

    mMessageQueue = looper.getQueue();
    // 转到jni层
    mReceiverPtr = nativeInit(new WeakReference<DisplayEventReceiver>(this), mMessageQueue,
            vsyncSource);

    mCloseGuard.open("dispose");
}

这里注意FrameDisplayEventReceiver类是DisplayEventReceiver的子类。

2.3 android_view_DisplayEventReceiver.cpp:nativeInit

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
static jlong nativeInit(JNIEnv* env, jclass clazz, jobject receiverWeak,
        jobject messageQueueObj, jint vsyncSource) {
    sp<MessageQueue> messageQueue = android_os_MessageQueue_getMessageQueue(env, messageQueueObj);
    if (messageQueue == NULL) {
        jniThrowRuntimeException(env, "MessageQueue is not initialized.");
        return 0;
    }

    // 2.4 根据传入的参数初始化NativeDisplayEventReceiver
    sp<NativeDisplayEventReceiver> receiver = new NativeDisplayEventReceiver(env,
            receiverWeak, messageQueue, vsyncSource);
    // 2.8 连接BitTube通信信道
    status_t status = receiver->initialize();
    if (status) {
        String8 message;
        message.appendFormat("Failed to initialize display event receiver.  status=%d", status);
        jniThrowRuntimeException(env, message.string());
        return 0;
    }

    receiver->incStrong(gDisplayEventReceiverClassInfo.clazz); // retain a reference for the object
    return reinterpret_cast<jlong>(receiver.get());
}

2.4 NativeDisplayEventReceiver 初始化

1
2
3
4
5
6
7
8
9
10
NativeDisplayEventReceiver::NativeDisplayEventReceiver(JNIEnv* env,
        jobject receiverWeak, const sp<MessageQueue>& messageQueue, jint vsyncSource) :
        // 注意这里
        DisplayEventDispatcher(messageQueue->getLooper(),
                // 将传入的vsyncSource（0）强制转换为VsyncSource.eVsyncSourceApp
                static_cast<ISurfaceComposer::VsyncSource>(vsyncSource)),
        mReceiverWeakGlobal(env->NewGlobalRef(receiverWeak)),
        mMessageQueue(messageQueue) {
    ALOGV("receiver %p ~ Initializing display event receiver.", this);
}

NativeDisplayEventReceiver 继承了 DisplayEventDispatcher。

2.5 DisplayEventDispatcher 初始化

1
2
3
4
5
6
DisplayEventDispatcher::DisplayEventDispatcher(const sp<Looper>& looper,
        ISurfaceComposer::VsyncSource vsyncSource) :
        // 这里的looper是app主线程的looper，mReceiver是我们所寻找的纽带
        mLooper(looper), mReceiver(vsyncSource), mWaitingForVsync(false) {
    ALOGV("dispatcher %p ~ Initializing display event dispatcher.", this);
}

mReceiver是DisplayEventReceiver类型。

2.6 DisplayEventReceiver初始化

1
2
3
4
5
6
7
8
9
10
11
12
13
DisplayEventReceiver::DisplayEventReceiver(ISurfaceComposer::VsyncSource vsyncSource) {
    sp<ISurfaceComposer> sf(ComposerService::getComposerService());
    if (sf != nullptr) {
        // vsyncSource就是VsyncSource.eVsyncSourceApp
        // 2.6.1 通过binder通信，在surfaceFlinger中创建DisplayEventConnection
        mEventConnection = sf->createDisplayEventConnection(vsyncSource);
        if (mEventConnection != nullptr) {
            // 2.7 取出EventThread类中新创建的BitTube的Fd（文件描述符表索引）
            mDataChannel = std::make_unique<gui::BitTube>();
            mEventConnection->stealReceiveChannel(mDataChannel.get());
        }
    }
}

之前的博文中也分析了，这里的ComposerService就是获取的SurfaceFlinger服务。

2.6.1 SurfaceFlinger.createDisplayEventConnection

进入SurfaceFlinger主线程。

1
2
3
4
5
6
7
8
9
10
11
12
sp<IDisplayEventConnection> SurfaceFlinger::createDisplayEventConnection(
        ISurfaceComposer::VsyncSource vsyncSource) {
    auto resyncCallback = mScheduler->makeResyncCallback([this] {
        Mutex::Autolock lock(mStateLock);
        return getVsyncPeriod();
    });
    // 这里的handle为mAppConnectionHandle
    const auto& handle =
            vsyncSource == eVsyncSourceSurfaceFlinger ? mSfConnectionHandle : mAppConnectionHandle;
    // 2.6.2 创建连接
    return mScheduler->createDisplayEventConnection(handle, std::move(resyncCallback));
}

2.6.2 Scheduler.cpp:createDisplayEventConnection

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
sp<IDisplayEventConnection> Scheduler::createDisplayEventConnection(
        const sp<Scheduler::ConnectionHandle>& handle, ResyncCallback resyncCallback) {
    RETURN_VALUE_IF_INVALID(nullptr);
    // mConnections是map类型，key值表示对应的EventThread类型
    // 这个初始化就是在SurfaceFlinger.init方法内，创建EventThread时同步生成的
    // 最终mConnections[handle->id]->thread.get()拿到的就是AppEventThread
    return createConnectionInternal(mConnections[handle->id]->thread.get(),
                                    std::move(resyncCallback));
}

sp<EventThreadConnection> Scheduler::createConnectionInternal(EventThread* eventThread,
                                                              ResyncCallback&& resyncCallback) {
    // 这里传入的eventThread就是appEventThread
    return eventThread->createEventConnection(std::move(resyncCallback));
}

这里mConnections[handle->id]->thread.get()拿到的是handle对应的EventThread.

2.6.3 EventThread.createEventConnection

1
2
3
4
5
6
7
8
9
10
sp<EventThreadConnection> EventThread::createEventConnection(ResyncCallback resyncCallback) const {
    return new EventThreadConnection(const_cast<EventThread*>(this), std::move(resyncCallback));
}

EventThreadConnection::EventThreadConnection(EventThread* eventThread,
                                             ResyncCallback resyncCallback)
      : resyncCallback(std::move(resyncCallback)),
        mEventThread(eventThread),
        // 注意这里创建的BitTube管道
        mChannel(gui::BitTube::DefaultSize) {}

创建EventThreadConnection时新建了个BitTube管道，看来就是通信枢纽就是这个了。

注意到这个类有onFirstRef方法，在生成对象后，就会调用。

2.6.4 EventThreadConnection.onFirstRef

1
2
3
4
void EventThreadConnection::onFirstRef() {
    // NOTE: mEventThread doesn't hold a strong reference on us
    mEventThread->registerDisplayEventConnection(this);
}

2.6.5 EventThread.registerDisplayEventConnection

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
status_t EventThread::registerDisplayEventConnection(const sp<EventThreadConnection>& connection) {
    std::lock_guard<std::mutex> lock(mMutex);

    // this should never happen
    auto it = std::find(mDisplayEventConnections.cbegin(),
            mDisplayEventConnections.cend(), connection);
    if (it != mDisplayEventConnections.cend()) {
        ALOGW("DisplayEventConnection %p already exists", connection.get());
        mCondition.notify_all();
        return ALREADY_EXISTS;
    }
    // 有新的连接了，就需要唤醒AppEventThread线程使能Vsync信号了。
    mDisplayEventConnections.push_back(connection);
    mCondition.notify_all();
    return NO_ERROR;
}

现在注意到我们仅仅是得到了一个BitTube，然而并没有用上这个管道。
接下来，回到[2.6 DisplayEventReceiver初始化] 创建DisplayEventReceiver的地方。

2.7 EventThreadConnection.stealReceiveChannel

1
2
3
4
status_t EventThreadConnection::stealReceiveChannel(gui::BitTube* outChannel) {
    outChannel->setReceiveFd(mChannel.moveReceiveFd());
    return NO_ERROR;
}

将新建的BitTube的Fd复制给outChannel, 也就是DisplayEventReceiver中的 mDataChannel.
虽然还是没有用上这个BitTube，不着急，继续看。

2.8 BitTube信道连接过程

2.8.1 DisplayEventDispatcher.initialize

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
status_t DisplayEventDispatcher::initialize() {
    // 这里的mReceiver 就是DisplayEventReceiver
    // 这一步就是确认BitTube创建无误
    status_t result = mReceiver.initCheck();
    if (result) {
        ALOGW("Failed to initialize display event receiver, status=%d", result);
        return result;
    }
    // 这个mLooper就是应用app进程的主线程Looper，所以这一步就是将
    // 创建的BitTube信道Fd添加到Looper中
    int rc = mLooper->addFd(mReceiver.getFd(), 0, Looper::EVENT_INPUT,
            this, NULL);
    if (rc < 0) {
        return UNKNOWN_ERROR;
    }
    return OK;
}

注意这个DisplayEventDispatcher是继承了LooperCallback, 所以这里的this方法就是handleEvent。

到这里这里整个Vsync流程已经跑通：

  1. SurfaceFlinger主线程收到硬件Vsync, 经过误差修正, 通知给DispSyncThread线程
  2. DispSyncThread线程计算各个EventThread的SW Vsync信号时间并及时发出
  3. AppEventThread收到sw Vsync信号，遍历各个Connection，调用sendEvent向对应BitTube管道发送事件
  4. App进程的主线程收到事件，并处理

接下来我们就看app收到sw vsync信号的处理过程。

三. App进程收到SW VSYNC信号

3.1 DisplayEventDispatcher.handleEvent

1
2
3
4
5
6
7
8
9
10
11
12
13
14
int DisplayEventDispatcher::handleEvent(int, int events, void*) {
    ......
    nsecs_t vsyncTimestamp;
    PhysicalDisplayId vsyncDisplayId;
    uint32_t vsyncCount;
    // 3.1.1 读取BitTube管道中的数据，返回值为true表示读取到了数据
    if (processPendingEvents(&vsyncTimestamp, &vsyncDisplayId, &vsyncCount)) {
        mWaitingForVsync = false;
        // 3.2 分发收到的sw vsync信号
        dispatchVsync(vsyncTimestamp, vsyncDisplayId, vsyncCount);
    }

    return 1; // keep the callback
}

3.1.1 DisplayEventDispatcher.processPendingEvents

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
bool DisplayEventDispatcher::processPendingEvents(
        nsecs_t* outTimestamp, PhysicalDisplayId* outDisplayId, uint32_t* outCount) {
    bool gotVsync = false;
    DisplayEventReceiver::Event buf[EVENT_BUFFER_SIZE];
    ssize_t n;
    // 读取管道中的所有数据
    while ((n = mReceiver.getEvents(buf, EVENT_BUFFER_SIZE)) > 0) {
        ALOGV("dispatcher %p ~ Read %d events.", this, int(n));
        for (ssize_t i = 0; i < n; i++) {
            const DisplayEventReceiver::Event& ev = buf[i];
            switch (ev.header.type) {
            case DisplayEventReceiver::DISPLAY_EVENT_VSYNC:
                // 拿到最新的sw vsync信号时间
                gotVsync = true;
                *outTimestamp = ev.header.timestamp;
                *outDisplayId = ev.header.displayId;
                *outCount = ev.vsync.count;
                break;
            case DisplayEventReceiver::DISPLAY_EVENT_HOTPLUG:
                dispatchHotplug(ev.header.timestamp, ev.header.displayId, ev.hotplug.connected);
                break;
            case DisplayEventReceiver::DISPLAY_EVENT_CONFIG_CHANGED:
                dispatchConfigChanged(ev.header.timestamp, ev.header.displayId, ev.config.configId);
                break;
            default:
                ALOGW("dispatcher %p ~ ignoring unknown event type %#x", this, ev.header.type);
                break;
            }
        }
    }
    if (n < 0) {
        ALOGW("Failed to get events from display event dispatcher, status=%d", status_t(n));
    }
    return gotVsync;
}

3.2 NativeDisplayEventReceiver.dispatchVsync

1
2
3
4
5
6
7
8
9
10
11
12
13
14
void NativeDisplayEventReceiver::dispatchVsync(nsecs_t timestamp, PhysicalDisplayId displayId,
                                               uint32_t count) {
    JNIEnv* env = AndroidRuntime::getJNIEnv();

    ScopedLocalRef<jobject> receiverObj(env, jniGetReferent(env, mReceiverWeakGlobal));
    if (receiverObj.get()) {
        ALOGV("receiver %p ~ Invoking vsync handler.", this);
        env->CallVoidMethod(receiverObj.get(),
                gDisplayEventReceiverClassInfo.dispatchVsync, timestamp, displayId, count);
        ALOGV("receiver %p ~ Returned from vsync handler.", this);
    }

    mMessageQueue->raiseAndClearException(env, "dispatchVsync");
}

通过JNI回调到java层的DisplayEventReceiver.dispatchVsync方法

3.3 DisplayEventReceiver.dispatchVsync

1
2
3
4
5
6
// Called from native code.
@SuppressWarnings("unused")
@UnsupportedAppUsage
private void dispatchVsync(long timestampNanos, long physicalDisplayId, int frame) {
    onVsync(timestampNanos, physicalDisplayId, frame);
}

参考2.2中，这里的DisplayEventReceiver 对象就是其子类FrameDisplayEventReceiver的对象。

3.4 FrameDisplayEventReceiver.onVsync

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
@Override
public void onVsync(long timestampNanos, long physicalDisplayId, int frame) {
    // Post the vsync event to the Handler.
    // The idea is to prevent incoming vsync events from completely starving
    // the message queue.  If there are no messages in the queue with timestamps
    // earlier than the frame time, then the vsync event will be processed immediately.
    // Otherwise, messages that predate the vsync event will be handled first.
    long now = System.nanoTime();
    if (timestampNanos > now) {
        Log.w(TAG, "Frame time is " + ((timestampNanos - now) * 0.000001f)
                + " ms in the future!  Check that graphics HAL is generating vsync "
                + "timestamps using the correct timebase.");
        timestampNanos = now;
    }

    if (mHavePendingVsync) {
        Log.w(TAG, "Already have a pending vsync event.  There should only be "
                + "one at a time.");
    } else {
        mHavePendingVsync = true;
    }

    mTimestampNanos = timestampNanos;
    mFrame = frame;
    // mHandler就是mFrameHandler，传入runnable立刻执行，也就是执行run里面的
    // doFrame方法。
    Message msg = Message.obtain(mHandler, this);
    msg.setAsynchronous(true);
    mHandler.sendMessageAtTime(msg, timestampNanos / TimeUtils.NANOS_PER_MS);
}

@Override
public void run() {
    mHavePendingVsync = false;
    // 进入Choreographer的绘图，接下来就是measure,layout,draw的过程了、
    doFrame(mTimestampNanos, mFrame);
}

完整的VSYNC流程图如下：


参考资料

  1. Android SurfaceFlinger SW Vsync模型
  2. DispSync
  3. DispSync详解

欢迎关注我的其它发布渠道
